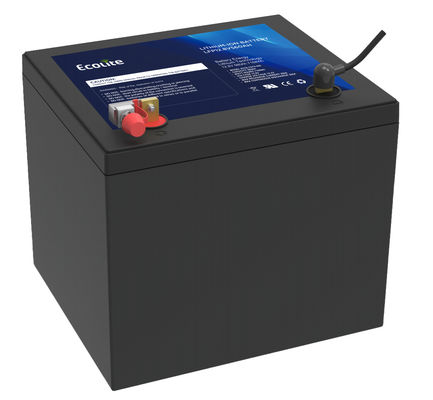

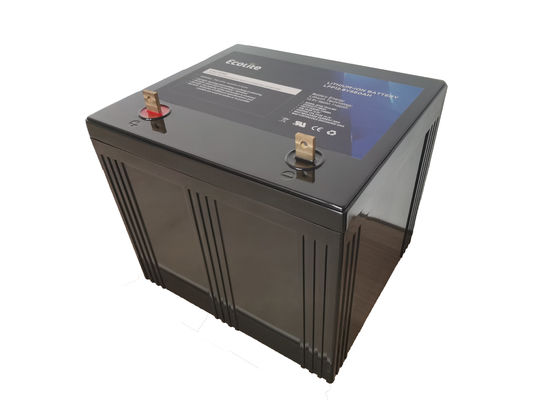

EcoLite LFP12-110: Multi-Scenario LiFePO4 Lithium Battery For RV, Marine & Backup Storage

5000
MOQ
Inquiry
цена
EcoLite LFP12-110: Multi-Scenario LiFePO4 Lithium Battery For RV, Marine & Backup Storage
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Химия клеточного типа: Клетка Lifepo4
Номинальное напряжение батареи: 12,8 В.
Емкость расклассифицированная батареей: 560AH
Энергия: 7168wh
Сопротивление: ≤30 МОм
Цикл жизни: >6000 циклов @0,5C,80% DOD
Самостоятельный разряд: <5% в месяц
Макс, модули в серии, параллельные.: 4s/2p
Размер (LXWXH): 401x351x342 мм
Коммуникация: Bluetooth
Температура разряда: -20 до 60 ℃
Температура хранения: -20 до 60 ℃
Зарядное напряжение: 14.2~14.6В
Максимальный ток заряда: 200a
Постоянный ток разряда: 200a
Основная информация
Место происхождения: КИТАЙ
Фирменное наименование: Ecolite/OEM/ODM
Номер модели: LFP12.8V560AH
Оплата и доставка Условия
Упаковывая детали: Контейнер с картонным поддоном
Время доставки: 1-2 месяца
Условия оплаты: L/C, T/T.
Поставка способности: 5000 единиц в месяц
Характер продукции

EcoLite LFP12-110: Multi-Scenario LiFePO4 Lithium Battery For RV, Marine & Backup Storage

Whether you’re an RV enthusiast needing reliable off-grid power, a boat owner seeking corrosion-resistant energy, or a homeowner prepping for grid outages—finding a versatile, low-maintenance battery that adapts to your needs is a challenge. The EcoLite LFP12-110 (12.8V110Ah) LiFePO4 Lithium Battery solves this by blending long-lasting performance, extreme weather resilience, and flexible customization, making it the ultimate LiFePO4 Lithium Battery for RV, marine, and backup storage applications.

Specifications

Electrical Parameters
Battery Nominal Voltage 12.8V
Battery Rated Capacity 560Ah
Energy 7168Wh
Internal Resistance ≤30mΩ
Efficiency ≥0.98
Cycle Life >6000cycles @0.5C,80% DOD
Self Discharge <5% per Month
Max, Modules in Series,Parallel 4S/2P



MechanicalParameters
Dimension(LxWxH) 401x351x342mm
15.79x 13.82x 13.46
Total Weight 50Kg
Terminal Type M8
Battery Housing ABS
Housing Protection IP65
Cell Type-Chemistry LiFePO4 Cell
Communication Bluetooth



Discharge Parameters
Continuous Discharge Current 200A
Pulse Discharge Current 300A(<1S)
Recommended Volt. Disconnect 10V
BMS Discharge Cut-off Voltage 10V
Reconnect Voltage 10.8V
Short Circuit Protection 300-800us



Charge Parameters
Charge Method CC-CV
Charge Voltage 14.2~14.6V
Recommended Float Voltage 13.3~13.4V@100%
Recommended Charge Current /
Maximum Charge Current 200A
BMS Charge Cut-off Voltage 14.8V



Temperature Parameters
Discharge Temperature -20℃ to 60℃
Charge Temperature 0℃ to 55℃
Storage Temperature -20℃ to 60℃
BMS High Temperature Cut-off 65℃


Why This LiFePO4 Lithium Battery Stands Out for Users
Every feature of this LiFePO4 Lithium Battery is engineered to address real user pain points—from frequent battery replacements to limited adaptability:
1. Ultra-Long Cycle Life: Save Money on Replacements
Tired of swapping out lead-acid batteries every 1-2 years? This LiFePO4 Lithium Battery delivers >3000 cycles at 1C, 80% Depth of Discharge (DOD)—that’s 5-10x longer than traditional lead-acid alternatives. Backed by a 5-year warranty, it ensures years of reliable service for RV trips, marine adventures, or home backup—no more unexpected costs or downtime from premature battery failure.

2. Wide Temperature Tolerance: Power Through Extreme Conditions
RVs venture into freezing mountains or scorching deserts; boats face saltwater humidity and temperature swings; backup storage needs to perform in winter cold or summer heat. This LiFePO4 Lithium Battery handles it all with:
Discharge temperature range: -20°C to 60°C: Keeps your RV fridge running in snowy campsites or your boat’s navigation system powered in hot coastal weather.
Charge temperature range: 0°C to 55°C: Recharges safely even in cool mornings, no need to wait for ideal weather.
BMS high-temperature cut-off at 65°C: Adds an extra layer of protection against overheating, critical for enclosed spaces like RV battery compartments.

3. High Charge/Discharge Rate: Fast Recharges & Instant Power
Users hate waiting for batteries to charge—or dealing with weak power for high-demand devices. This LiFePO4 Lithium Battery delivers:
100A maximum charge current: Recharges quickly via CC-CV method (recommended 50A), getting your RV ready for the next leg of the trip in hours, not days.
100A continuous discharge current & 200A pulse discharge (<10S): Powers high-wattage gear like RV air conditioners, marine pumps, or home backup sump pumps without voltage drops—no more sacrificing comfort or safety.

Key Features of This LiFePO4 Lithium Battery (User-Centric Design)
Beyond core performance, this LiFePO4 Lithium Battery includes details that make daily use easier:
Integrated BMS for Safety: A built-in Battery Management System protects against overcharging, over-discharging, short circuits (300-800µs response), and overcurrent—preventing battery damage and ensuring safe operation in family RVs or marine environments.
IP67 Water & Dust Resistance: Housed in durable ABS material with IP67 protection, this LiFePO4 Lithium Battery resists splashes, dust, and mild corrosion—perfect for boat decks or RV undercarriages where moisture is a risk.
Bluetooth Monitoring: Check State of Charge (SOC), voltage, and temperature remotely via Bluetooth—no need to open battery compartments or disconnect wires to track performance.
Flexible Scalability: Supports up to 4 units in series or 4 in parallel, letting you expand capacity for larger needs (e.g., powering a full RV fleet or a multi-device home backup system).
Customizable for Your Needs: Struggling with limited space in your RV? Need a larger capacity for long marine trips? We offer customizations for battery housing (material/color), capacity, and even terminal types—this LiFePO4 Lithium Battery adapts to your setup, not the other way around.
Ideal Applications: Where This LiFePO4 Lithium Battery Shines
1. RV & Camper Backup Power
Powers essential RV gear: Refrigerators, LED lighting, portable heaters, and charging stations for phones/laptops.
Lightweight (11kg) design: Reduces RV weight compared to lead-acid batteries, improving fuel efficiency for longer trips.
Low self-discharge (<5% per month): Retains power during storage—your RV is ready to go after weeks of being parked.
2. Marine Backup & Onboard Power
Resists saltwater corrosion: IP67 protection and ABS housing stand up to marine environments.
Reliable for boating essentials: Runs fish finders, GPS systems, bilge pumps, and cabin lighting—even during long days on the water.
3. Home & Small Business Backup Storage
Keeps critical devices running during outages: Wi-Fi routers, medical equipment, and emergency lighting.
Scalable via parallel/series connection: Expand to match your home’s power needs (e.g., pairing 2 units for 220Ah capacity).

For users seeking a one-stop energy solution that works across RV, marine, and backup storage—without compromising on performance or adaptability—the EcoLite LFP12-110 LiFePO4 Lithium Battery is the answer. Its long life, weather resilience, and customizability make it more than a battery—it’s an investment in hassle-free power.
